◎CHARACTERISTICS

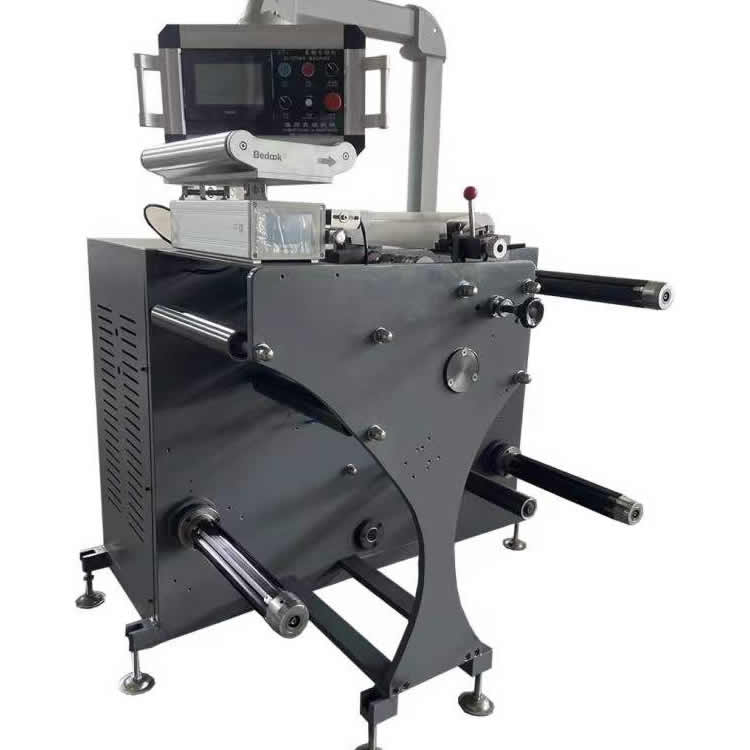

350 type automatic cutting machine is an automatic die-cutting machine accessory products, this machine is applicable to a narrow range of paper cutting. It has automatic meter, counting, automatic shutdown, set the length of the number, the unwinding by photoelectric automatic deviation control etc.. The machine structure is compact, fast speed, high efficiency, accurate slitting, simple operation, smooth running characteristics.
Main Technical Parameter
type
Cutting Speed
Max Web Width
Max Unwinding Diameter
Max Rewinding Diameter
The cutting precision
Overall Diameters
Machine Weight
The main motor power
Automatic control of winding and unwinding tension
|
FQ350
200m/min
350mm
600mm
600mm
±0.5mm
1400*1100*1800(mm)
约(about)1000kg
2.2kw
2.5kgMagnetic powder tension
|
|
